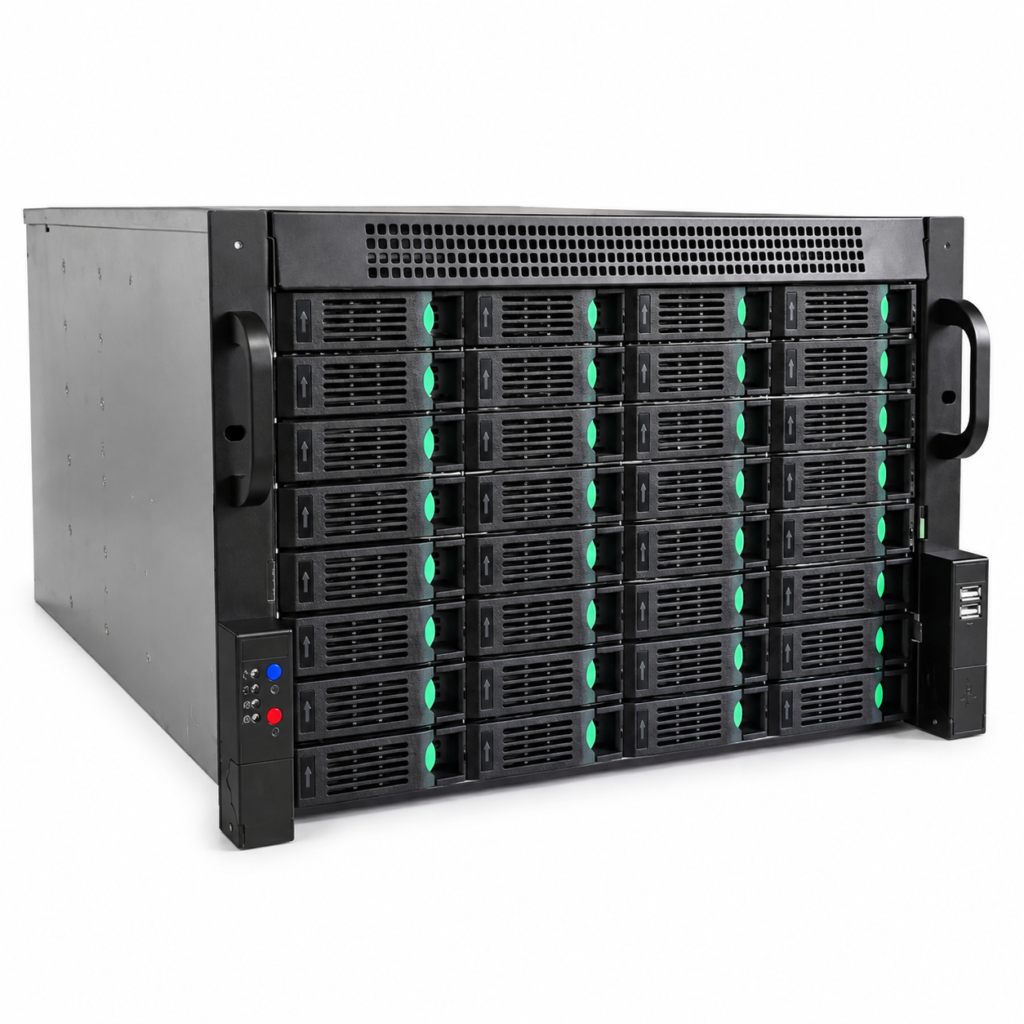

128 Channel 32 HDD NVR
Enterprise Network Video Recorder for Large-Scale IP Surveillance Systems
High-Capacity Video Storage Platform for Industrial Security Applications
The 128 Channel 32 HDD NVR is an enterprise-grade network video recorder designed for large-scale IP surveillance projects requiring high channel capacity, extended video retention, and reliable 24/7 recording performance.
Supporting up to 128 IP camera channels and a 32-bay SATA HDD storage architecture, this NVR provides a centralized video management and storage solution for industrial facilities, oil & gas plants, offshore platforms, ports, airports, and large manufacturing sites.
With advanced video compression, RAID storage options, and flexible network integration, the system helps customers build reliable long-term surveillance infrastructure for critical applications.
Key Features
● 128-Channel IP Camera Support
Supports up to 128 network camera inputs with ONVIF and RTSP compatibility for flexible integration with various IP surveillance devices.
Compatible with:
- Industrial IP Cameras
- Explosion Proof IP Cameras
- PTZ Cameras
- Thermal Imaging Cameras
- Third-party ONVIF Cameras
● 32-Bay Large Capacity Storage
Equipped with up to 32 SATA HDD bays, the NVR is designed for applications requiring extended video retention.
Suitable for:
- Continuous 24/7 recording
- Large camera networks
- Long-term evidence storage
- Centralized surveillance management
Actual storage duration depends on:
- Camera quantity
- Resolution
- Frame rate
- Bitrate
- Recording mode
- Compression technology
- HDD capacity
- RAID configuration
● Reliable RAID Storage Protection
The NVR supports multiple RAID configurations depending on hardware configuration.
| RAID Mode | Application |
|---|---|
| RAID 0 | Performance priority, no redundancy protection |
| RAID 1 | Data mirroring for reliability |
| RAID 5 | Balance between capacity and protection |
| RAID 6 | High reliability with dual HDD fault tolerance |
| RAID 10 | High performance and redundancy |
Optional storage management functions:
- HDD health monitoring
- HDD failure alarm
- RAID rebuilding
- Hot spare support
● High Resolution Video Recording
Supports high-resolution IP camera recording, including up to 8K video sources depending on system configuration.
Actual recording and decoding capability depends on:
- Camera stream resolution
- Bitrate
- Frame rate
- Encoding format
- Total channel loading
Advanced compression:
- H.265
- H.265+
Benefits:
- Reduced storage requirements
- Lower network bandwidth consumption
- Longer retention time
Storage Capacity Example
For a system with:
- 128 cameras
- 4 Mbps average bitrate per camera
- Continuous recording
- 24 hours/day
Estimated storage requirement:
≈ 5.5 TB per day before RAID overhead
Actual retention time should be calculated based on:
- Camera bitrate
- Motion activity
- Recording schedule
- RAID configuration
Integration with Industrial CCTV Systems
The 128 Channel 32 HDD NVR can be integrated into professional industrial surveillance systems.
Typical architecture:
Explosion Proof Camera / Industrial IP Camera
↓
Industrial Network Switch
↓
128 Channel 32 HDD NVR
↓
Control Room / Video Wall / Remote Client
For hazardous-area applications:
Explosion-proof cameras installed in Zone 1, Zone 2, Zone 21 or Zone 22 areas can transmit video through Ethernet networks to the NVR installed in a safe control room.
The NVR itself is normally installed in a non-hazardous area unless protected by a separately certified enclosure or system solution.
Typical Applications
Oil and Gas Facilities
Suitable for refineries, petrochemical plants, LNG terminals, tank farms, pipeline stations, and gas processing facilities requiring centralized recording from industrial and explosion-proof camera systems.
Offshore and Marine Security
Designed for offshore platforms, drilling rigs, FPSO vessels, shipyards, marine terminals, and port facilities requiring long-term storage of deck, process-area, crane, engine-room, and perimeter surveillance footage.
Transportation and Logistics
A suitable centralized recording solution for airports, container terminals, railway facilities, cargo yards, logistics centers, and large distribution sites.
Industrial Manufacturing
Applicable to factories, power plants, chemical facilities, mines, steel plants, warehouses, and industrial parks where continuous surveillance and evidence retention are required.
How to Select the Right NVR Configuration?
For accurate storage calculation and system recommendation, please provide:
Camera Information
- Number of cameras
- Camera resolution
- Frame rate
- Bitrate
- Camera type
Storage Requirement
- Required retention days
- Continuous or event recording
- RAID requirement
- HDD capacity preference
Project Environment
- Oil & Gas
- Offshore
- Marine
- Industrial facility
- Control room
Our engineering team can recommend:
- Suitable NVR model
- HDD quantity
- RAID configuration
- Network architecture
Request a Customized Storage Solution
Need a professional 128 Channel 32 HDD NVR solution?
Send us:
✔ Camera quantity
✔ Camera resolution
✔ Average bitrate
✔ Required storage days
✔ RAID requirement
EXCCTVCamera engineers will provide a recommended:
- NVR configuration
- HDD capacity calculation
- Storage architecture
- Surveillance system design
EXCCTVCamera — Professional Video Storage Solutions for Industrial Surveillance Applications
