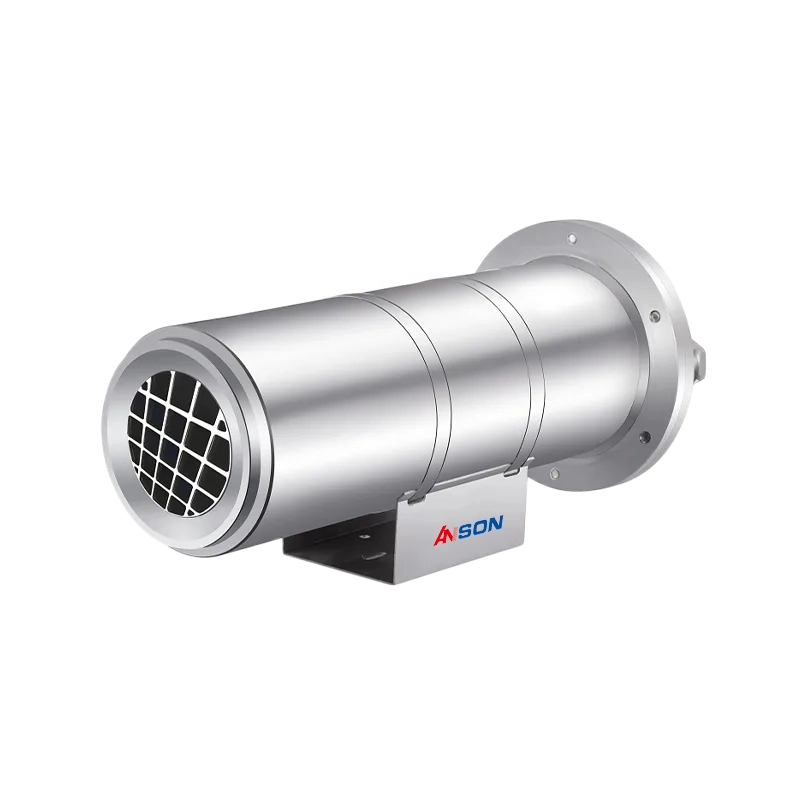

Explosion Proof Thermal Housing Camera

Model Name: Explosion proof IP PTZ Camera
Model No.:HL-814A-W-5.0MP-T
Resolution: 5.0MP
Zoom lens: 8mm fixed lens
Certification: ECM 25 ATEX-B 0Q75 (ATEX )
Ex-mark : Ex db IIC T6 Gb/Extb IIIC T80℃ Db
Material: 304/316L stainless steel optional

Product Details
Main Features
Technical Parameters
FAQ
Inquiry

Description:

Using the latest uncooled infrared focal plane sensor and self-developed image processing algorithm, equipped with a new generation of thermal infrared high transmittance lens, without any light source, it can obtain high-definition images in all weather conditions and even in dark environments by detecting infrared thermal radiation (or heat).

Manufacturing Standards:

GB3836.1-2000 “Electrical Apparatus for Use in Explosive Gas Atmospheres – Part 1: General Requirements”

GB3836.2-2000 “Electrical Apparatus for Use in Explosive Gas Atmospheres – Part 2: Flameproof Type “d””

GB 12476.1-2000 “Electrical Apparatus for Use in Combustible Dust Atmospheres – Part 1: Electrical Apparatus Protected by Enclosures and Surface Temperature Limitation”

Environment:

It is suitable for use in factories with explosive mixtures of flammable gases, vapors and air of Groups IIA, IIB and IIC T1 to T6, in Zone 0, Zone 1 and Zone 2, and in Zone 20, Zone 21 and Zone 22 where explosive mixtures of flammable dust and air are formed. Such as petroleum, chemical, docks, oil depots, ships, drilling platforms, gas stations, mines, ports, aerospace, military, medicine, steel, fireworks production, machinery, grain processing and storage, etc.

Main Features:

Double explosion-proof certification, explosion-proof mark: Ex dbⅡC T6 Gb / EX tb IIIC T80℃ Db
The highly integrated color camera and infrared thermal imaging system are smaller and lighter, with smarter and more advanced features.
The overall exterior structure is 90% tamper-resistant.
Suitable for hazardous and harsh environments where flammable gases or dust are present, the dual-side loading structure simultaneously carries both the camera and infrared thermal imaging equipment.
Constructed of stainless steel, the integrated, simple design features a double-sided waterproof tempered glass window for impact resistance, excellent shielding, and heat dissipation. It is explosion-proof, dust-proof, waterproof, and rust-resistant.

Model	HL-814A-W-5.0MP-T
Certification
Ex-proof Mark	Ex db ⅡC T6 Gb/EX tb IIIC T80℃ Db
Certification	ECM 25 ATEX-B 0Q75 (ATEX )
General
Material	304 Stainless steel
Surface treatment	Stainless steel original color, electro-polishing optional
IP Grade	IP67
Connector Size	M25*1.5
Weight	≤7.5kg
Size	376mm163mm145mm
Installation	Pole mount, wall mount ( not include Bracket)
Visible Image
Camera	5.0Megapixel
Lens	8mm
View Angle	Horizontal: 40° ; Vertical:22°
Iris	F1.2
Resolution	2880 (H)×1620(V)
Language	Chinese/English
Minimum illumination	Color: 0.001 Lux @(F1.2, AGC ON), B/W: 0.0003 Lux， 0 Lux with IR
Video Compression	H.265/H.264/MJPEG
Signal-to-noise ratio	＞52dB
WDR	120db
BLC	Support
Digital noise reduction	Support 2D/3D
Thermal Image
Detector	Uncooled
Material	Vanadium oxide
Wavelength range	8~14μm
Resolution	256 × 192
Pixel size	12um
Thermal sensitivity NETD	＜ 50 mk(@25 °C,F#=1.0)
Frame rate	50/60Hz
Lens	10mm
Field of view	Horizontal: 17°, Vertical:13°
Clear imaging range	0.3m~∞
Pseudo-color image mode	Black hot/white hot/rainbow/iron red/custom (up to 17 pseudo color modes optional)
Temperature abnormality function	Full-screen temperature measurement expert mode: 10 points, 10 frames, 1 line, a total of 21 temperature measurement rules
Theoretical temperature measurement range	-20℃～+150℃
Dual-light fusion	Supports thermal imaging channel fusion of visible light image information to enhance thermal imaging channel image details
Intelligent Features	I/O alarm, temperature measurement warning, intelligent analysis alarm
Network protocols	IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x
RS485	Support 1ch, Adaptive PELCO-P and PELCO-D
Detection function	Human and vehicle shape detection, support for fire point and smoking detection alarm, cross-border detection, intrusion detection, entry/area detection
Environment
Temperature	（-30℃，+70℃）
Compression	80-106KPa
Relative humidity	≤95%RH(+25℃)

Q1: How to buy them?
A:We have no online store, please contact with us by email or whatsapp to buy directly

Q2: I have no import license, can i import it ?
A: Please contact with us, we will check how to assist you to import successfully.

Q3: What’s your payment term,and What currency do you accept?
A: We accept TT or Western union or Paypal. We accept CNY,USD,EUR etc.

Q4: How to ship them?
A: It can ship by Express , such as DHL, Fedex, UPS etc, and also can ship by Sea

Q5: What’s your warranty time ?
A: We provide two years warranty time, If there are any problems beyond the warranty time, we will also assist you to solve them. Under normal use (not improper power operation), the service life of the product itself is more than 5 years or even longer.
