Ex-proof Enclosure

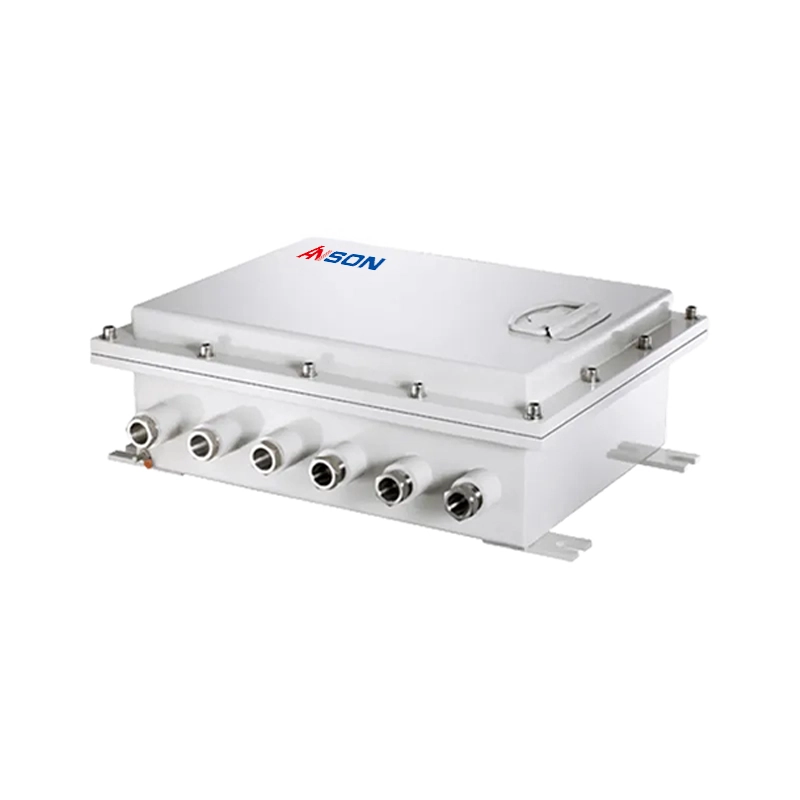

Ex-proof Enclosure

  • Model Name:Explosion proof enclosure
  • Model No.:HL-EX80
  • Connector port :   M25 or customized
  • Size:                       Customized for clients (2ports,4ports,6ports,8ports,10ports,12ports etc)
  • Certification:              ECM 25 ATEX-B 0Q77   (ATEX )
  • Ex-mark :                      Ex db IIC T6 Gb/Extb IIIC T80℃ Db
  • Material:                            304/316L stainless steel optional

Send Inquiry Live Chat
  • Product Details
  • Main Features
  • Technical Parameters
  • FAQ
  • Inquiry
Ex-proof Enclosure – ATEX & IECEx Certified Explosion-Proof Junction Boxes for Hazardous Zone 1, 2, 21, 22
Protect critical electronics in volatile atmospheres with our precision-cast Ex-proof enclosure series.
CNC-machined 316L or 304 stainless steel delivers IP66/IP68 sealing against dust, water and corrosion, while patented flame-path threads cool ignited gases below auto-ignition temperature for Class IIA, IIB, IIC gases and T6 temperature class.
Each junction box is certified ATEX,  offering global compliance for oil refineries, chemical plants, offshore platforms, LNG terminals, hydrogen stations, paint booths, grain silos and mining sites.
Choose from different sizes,  request custom cut-outs, hinged lids, viewing windows, terminal rails, DIN plates, mounting feet and internal earth studs. Thread options include M20, M25 etc, dual-certified glands; lid-retention chains prevent dropped parts during maintenance. Temperature range –50 °C to +180 °C,  laser-marked nameplate never fades.

Main Features:

  • Double explosion proof certification, explosion proof mark: Ex db IIC T6 Gb ; Ex tb IIIC T80℃ Db
  • IP66,Explosion-proof,anti-corrosion,dust-proof and waterproof
  • Work Temperature: -30°C~+60°C
  • 304 / 316L Stainless steel Stainless steel.
  • Customized ODM & OEM
  • Environment temperature: -40℃～+60℃;
  • Average relative humidity of ambient air is 95% (+25℃);
  • In areas with explosive mixtures of flammable gas or vapor and air in Zone 1 and Zone 2 of Groups IIA, IIB, IIC (limited to IIC grade products), T1～T6;
  • In environments without corrosive substances that damage insulation;
  • In places without significant shaking and shock vibration;
  • In places with splashing and watering.
  • The worst transportation conditions that explosion-proof control boxes can withstand
  Model         HL-EX80
  IP Grade  IP68
  Ex-proof standards  Ex db ⅡC T6 Gb/EX tb IIIC T80℃ Db
  Material304 Stainless steel316L Stainless steel
  Work temperature  -40℃～ +60℃
  Humidity95%
  Power  DC12V/24V，AC220V all suitable ( Remarks: default not built-in Power supply )
 Humidity < = 95%（+25°C）
  Air pressure  80kpa～106kpa
  Constant temperature system  Optional
  Inner size200mm*200mm*90mm
 400mm*300mm*150mm
 190mm*125mm*76mm
 127mm*127mm*85mm
  And other size
  Weight  ≤ 10kg   ≤ 2kg
 Outlet port and size2* G3/4, 4* G3/4” , 6* G3/4” , 8* G3/4” ,
  Installation  Pole, wall mount, fixed bracket

Q1: How to buy them?
A:We have no online store, please contact with us by email or whatsapp to buy directly

Q2: I have no import license, can i import it ?
A: Please contact with us, we will check how to assist you to import successfully.

Q3: What’s your payment term,and What currency do you accept?
A: We accept TT or Western union or Paypal. We accept CNY,USD,EUR etc.

Q4: How to ship them?
A: It can ship by Express , such as DHL, Fedex, UPS etc, and also can ship by Sea

Q5: What’s your warranty time ?
A: We provide two years warranty time, If there are any problems beyond the warranty time, we will also assist you to solve them. Under normal use (not improper power operation), the service life of the product itself is more than 5 years or even longer.
